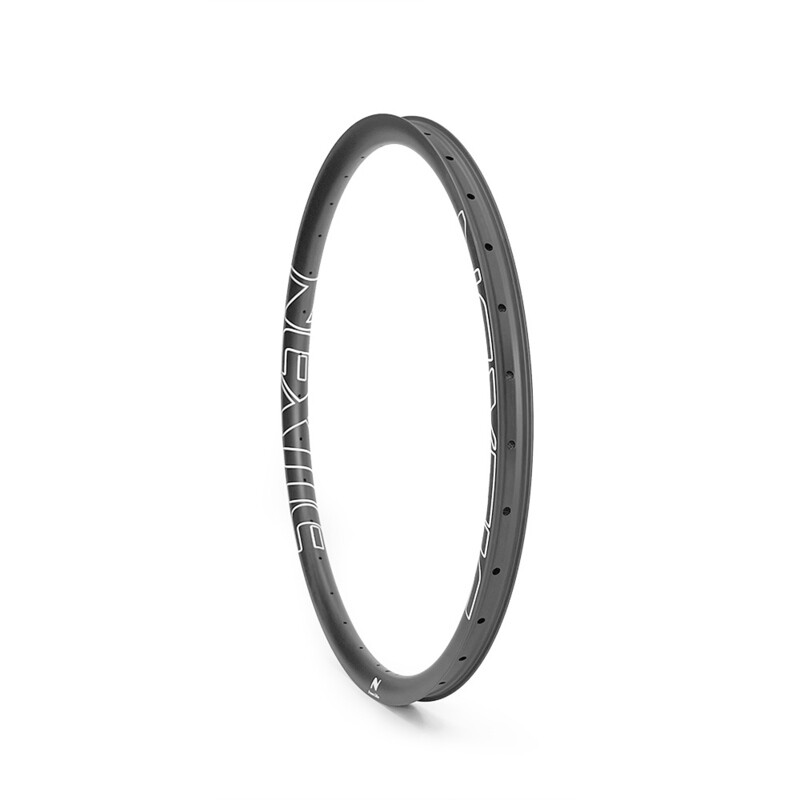

Prem Symmetrical 29 x 27 | 30 | 33 | 36 | 41 | 46mm

For the XC racers, recently (May 2020) we NEXTIE developed two innovative ultralight MTB rims, specially for XC Mountain Bike racing.

We redesigned the profile of 27mm width rim NXT29UM27 and 30mm NXT29UM30, drawing internal width and rim depth in same size, which is proved to be best engineering profile, not only keep these XC rims in high stiffness, but consider the weight as light as possible.

T1000 carbon fibers are composed to these two new types of rims, which materials proved to be super and fantastic performance in the past nearly 3 years. We are proud of these two new designed Ultralight rims, racing level for XC cycling.

Meanwhile, to keep improving in aspect of All Mountain level, we renewed two types of AM level carbon rims. The new models are NXT29XM36 and NXT29XM41, for the AM and Enduro cyclings. Internal width are specially designed as loved 30mm and 35mm, for much more fittable tires in accordingly ranges.

Surely to make rim in high strength, T800 carbon fiber added, and we used premium layer-up system to compose these rims, though more complicated, but worthy. Additionally, we also renewed the production technology. The test results showed a higher level strength.

Test report and Test videos, click here.

For all the Ultralight Edition rims and Premium Edition rims, certainly we do improvements over traditional-tech carbon rims.

1. Materials: T1000 carbon fiber added to Ultralight Edition rims (NXT29UM27, NXT29UM30, NXT29UL32), and T800 carbon fiber added to Premium Edition rims;

2. Optimized the layup system mixing T700 & T800/T1000 carbon fibers after many times of producing, testing, producing and testing, found a best impact resistance over durability and tenacity.

3. We made a single mold to layer up the spoke bed wall. The flatness of rim channel surface significantly improved so that thickness at each spoke hole completely consistent. It effectively prevents the carbon loop of spoke hole wall from shifting;

4. Each of rim would be attached with a card showing the flatness and roundness. The flatness and roundness are controlled quite well. Flatness is controlled within (+/-0.15mm), and roundness within +/-0.2mm, easier to tune when do wheelset assembly;

5. Three year warranty offered for Ultralight and Premium Edition rims
