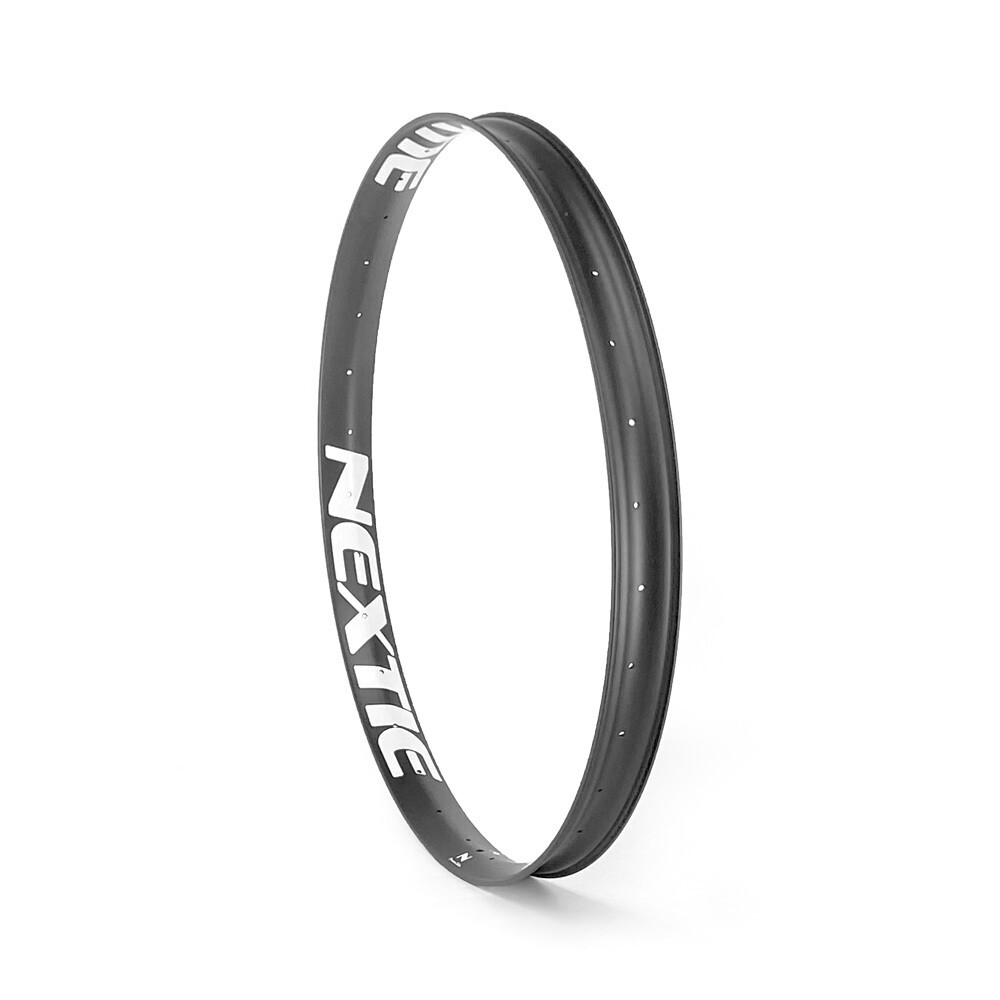

[Xiphias] 27.5" Fat Rim 55mm

Nextie rims are bespoke made and take around 6 weeks to delivered to your door.

Basic

• Item #: NXT27XS55 (PREMIUM)
• Material: Toray T700 + T800 Carbon Fiber
• Rim Type: Clincher / Hookless
• Name: Xiphias (Single Wall)
• Warranty: 3 Years

Dimension

• Size: 27.5"
• Axial Direction Angle: 8 degree
• BSD: 584mm
• Radial Direction Angle: 6 degree
• ERD: 571mm
• Spoke Bed Offset: 2.5mm
• External Width: 55mm
• Spoke Hole Dia.: 4.5mm
• Depth: 16mm
• Valve Hole Dia.: 6.5mm (Presta)
• Weight: 400g +/-15g
• Assembly Hole Dia.: 7.5mm

Recommendation

• Tire Size: 2.7" ~ 3.8"
• Max Spoke Tension: 130kgf
• Spoke Nipple Length: 14mm
• Carrying Capacity (One Wheel): 100kg
• Max Tire Pressure: 30psi (Recommended 5-15psi)

Appearance

• Weave: UD / wave / 12K
• Finish: Matte / Glossy

Application

• Trail / Dirt / Enduro / Snow / Sand / Bogs / Desert / Mud
