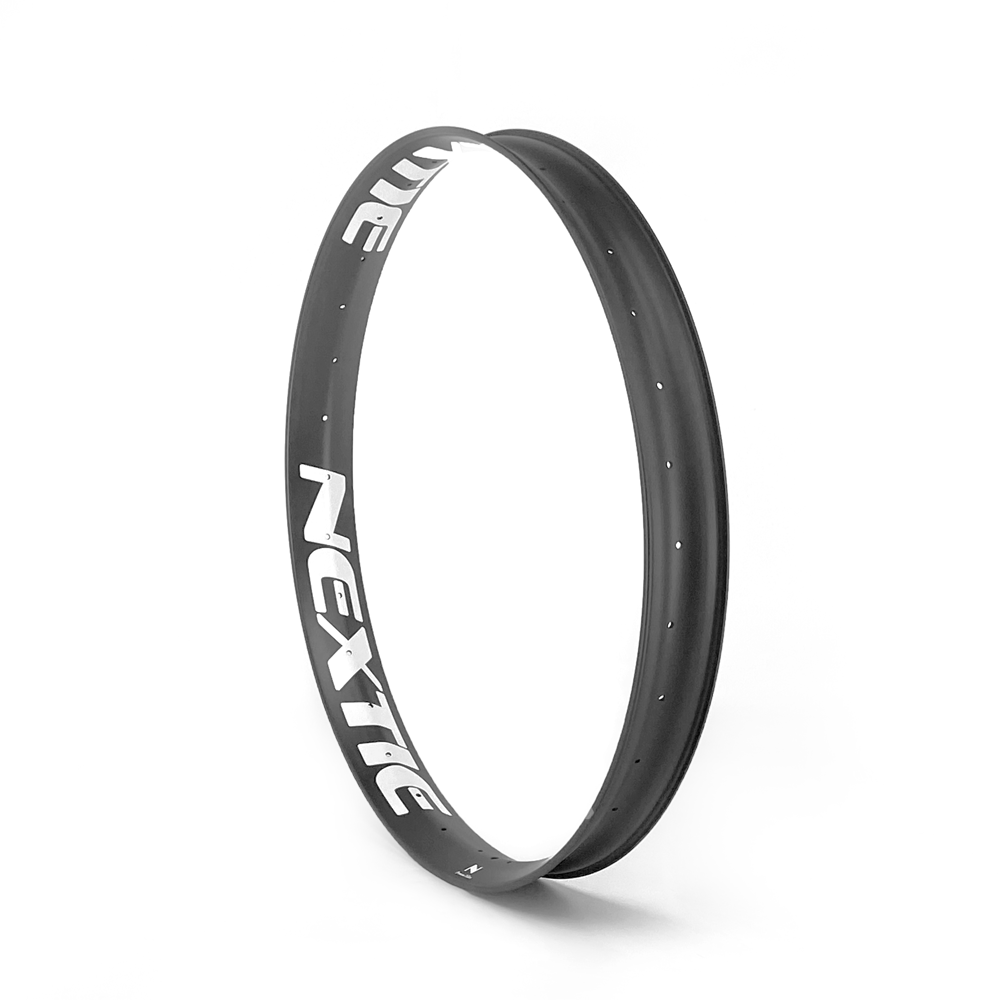

[Xiphias] 26" Fat Rim 65mm

Nextie rims are bespoke made and take around 6 weeks to delivered to your door.

Basic

• Item #: NXT26XS65 (PREMIUM)
• Material: Toray T700 + T800 Carbon Fiber
• Rim Type: Clincher / Hookless
• Name: Xiphias (Single Wall)
• Warranty: 3 Years

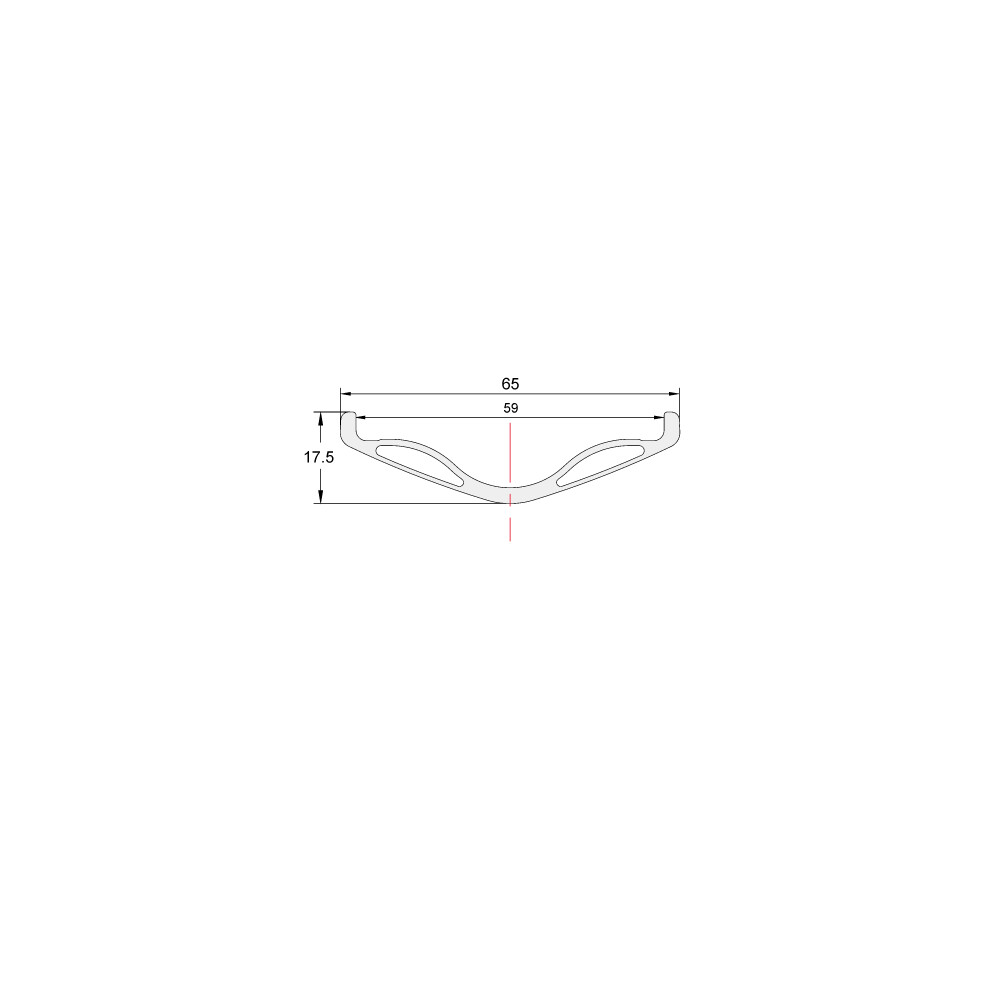

Dimension

• Size: 26"
• Axial Direction Angle: 8 degree
• BSD: 559mm
• Radial Direction Angle: 6 degree
• ERD: 544mm
• Spoke Bed Offset: 2.5mm
• External Width: 65mm
• Spoke Hole Dia.: 4.5mm
• Depth: 17.5mm
• Valve Hole Dia.: 6.5mm (Presta)
• Weight: 440g
• Assembly Hole Dia.: 7.5mm

Recommendation

• Tire Size: 3.0"+
• Max Spoke Tension: 130kgf
• Spoke Nipple Length: 14mm
• Carrying Capacity (One Wheel): 100kg
• Max Tire Pressure: 30psi (Recommended 5-15psi)

Appearance

• Weave: UD / 3K / 12K
• Finish: Matte / Glossy

Application

• Trail / Dirt / Enduro / Snow / Sand / Bogs / Desert / Mud

Design Features

• - Width 65mm fits more forms of cycling and keeps riding in great stability;
• - Deep channel would help you easily install and take off a tire;
• - Small bead socket could lock tire tightly and help run tubeless perfectly;
• - Aero roof surface (triangle-like shape) could easily shed the dirt or mud, better to release weight during cycling;
• - Section of triangle's inherent feature of stability on rim design keeps rim in strong performance.
