Introduction

The carbon fiber bicycle industry has been innovating and advancing all the time. Being lighter and stronger has always been the pursuit of the professional bicycle industry, especially for the mountain rims for XC (Cross Country) riding , where riders have extreme weight requirement. The Supreme Edition was created to explore the performance and weight limits of carbon fiber materials applied to bicycle wheels. We know that different materials would affect the performance and weight of rim products. What if we change the appearance design of a rim? Would it bring any difference or improvements in the strength and weight?

We have found that the most vulnerable part of a rim is the rim lip. If we could enlarge the area of rim lip where it contacts to the tire, in theory, under the same impact force, the pressure on a rim who has a wider lip area would be less, which could performance a higher impact resistance. Based on this theoretical premise, we newly designed the Supreme Edition Omega 36U mountain bicycle rim for cross country with a rim lip thickness at 3.0mm.

The impact test result reaches 105J for this Omega 36U rim. This is a huge improvement comparing to the Premium Edition. IMPACT TEST VIDEO

On date 2024.08.08, we successfully developed a lighter version of Omega 36U, the weight is 260g only. The impact test result reaches 100J. IMPACT TEST VIDEO (260g)

This rim could be used for Cross Country, Marathon, Endurance Cross Country, Trail riding. The tire size for this model of rim is recommended at 2.0" ~ 2.75". The tire pressure is recommended at 18 ~ 32 psi.

What's in the Box

• Name: Omega 36U
• Code: NXT29VM36U
• Rim Type: Mountain Bike (Clincher, Hookless)
• Materials: Carbon Fiber (Mixed)
• Tubeless Compatible: Yes
• Drillings: 24, 28, 32
• Edition: Supreme Edition
• ASTM Classification: Condition 3
• Warranty: 5 Years
• Release Time: July 2024

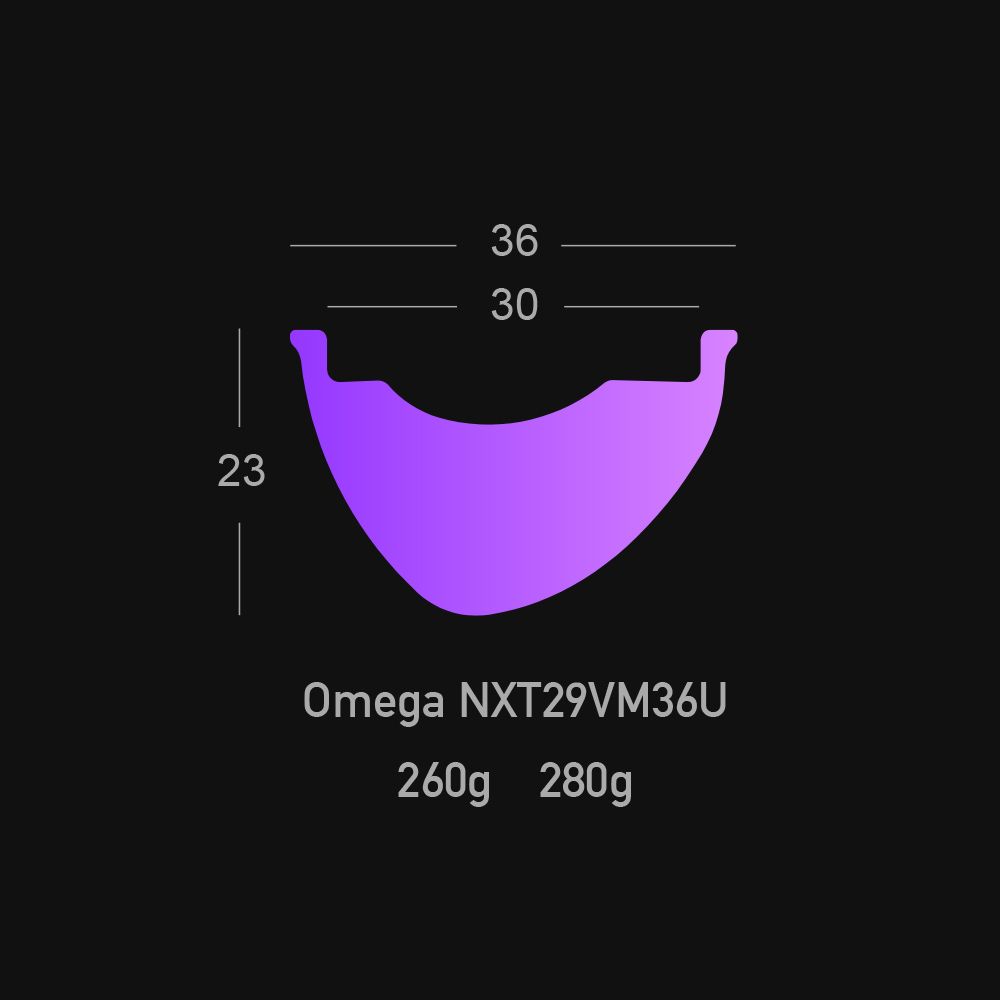

Specification

• Size: 29"
• BSD (Bead Seated Diameter): 622mm
• ERD (Effective Rim Diameter): 594mm
• External Width: 36mm
• Internal Width: 30mm
• Rim Height: 23mm
• Spoke Bed Offset: 3.0mm
• Weight: 260g / 280g
• Valve Hole Diameter: 6.5mm (Presta)
• Spoke Holes Diameter: 4.5mm
• Assembly Hole Diameter: 7.5mm
• Rim Lip Thickness: 3.0mm
• Drain Holes: Yes
• Strength: 100J (260g) / 105J (280g) <Pointed Hammer, 25psi>

Recommendation

• Tire Size: 2.0" ~ 2.75"
• Tire Pressure: 18 ~ 32 psi
• Spoke Tension: 100 ~ 130kgf
• Max System Weight: 143Kg (260g XC) / 150Kg (280g XC)

Appearance

• Weave: UD
• Finish: Free Coating, Matte, Glossy

Application

• Cross Country, Marathon, Endurance Cross Country, Trail
• This rim is designed for tubeless or tubeless-ready tires only. Inner tubes are ok, but the tire must have tubeless beads for safe retention.
