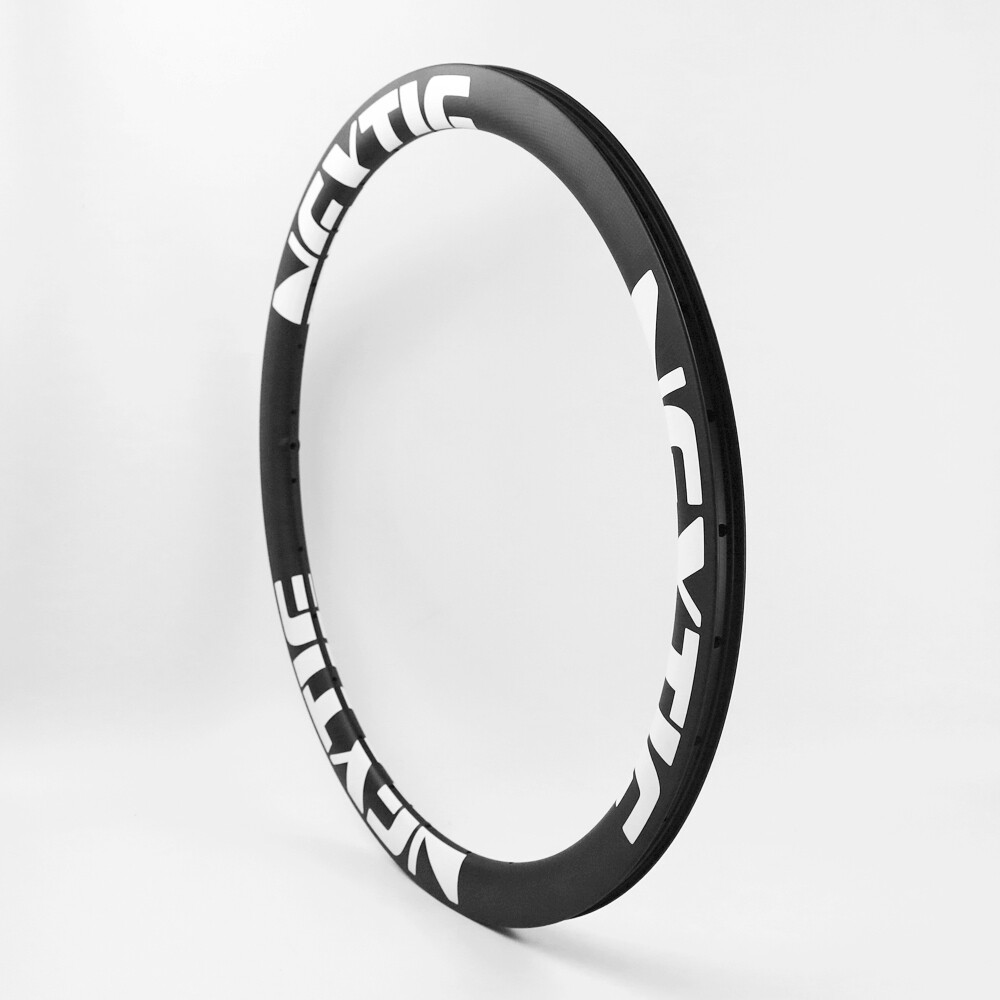

NXT45GR 700 x 45mm

All Nextie rims take around 6 weeks to be made and delivered to your door.

Basic

• Item #: NXT45GR
• Material: Toray T700 Carbon Fiber
• Rim Type: Clincher
• Warranty: 2 Years

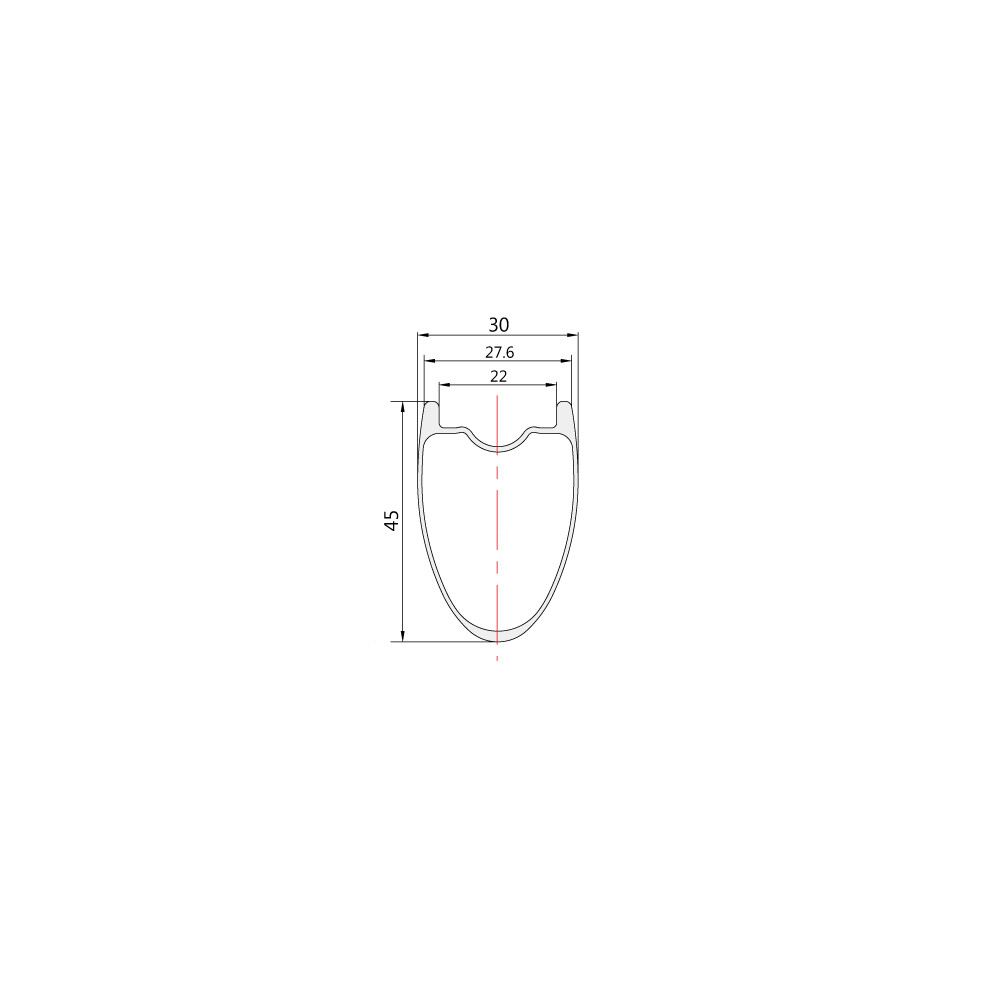

Dimension

• Size: 700C
• ERD: 551mm
• Width: 30mm
• Spoke Hole Dia.: 4.5mm
• Depth: 45mm
• Valve Hole Dia.: 6.5mm
• Weight: 470g
• Assembly Hole Dia.: 7.5mm
• Hole count: 16, 18, 20, 24, 28, 32, 36

Recommendation

• Max Spoke Tension: 130kgf
• Spoke Nipple Length: 14mm / 16mm
• Weight Limit: 120kg
• Max Tire Pressure: 100psi

Appearance

• Weave: UD / 3K / 12K
• Finish: Matte / Glossy

Application

• Road / Triathlon / TT / Cyclocross
