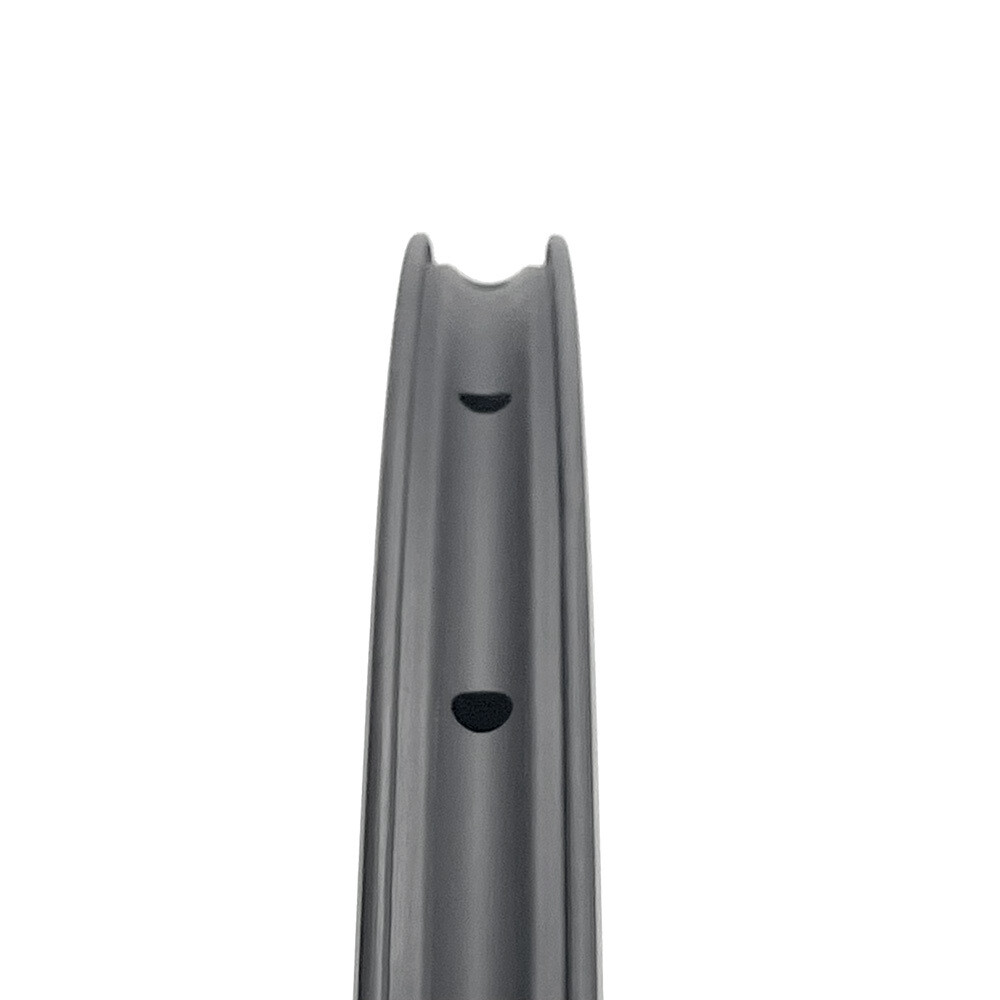

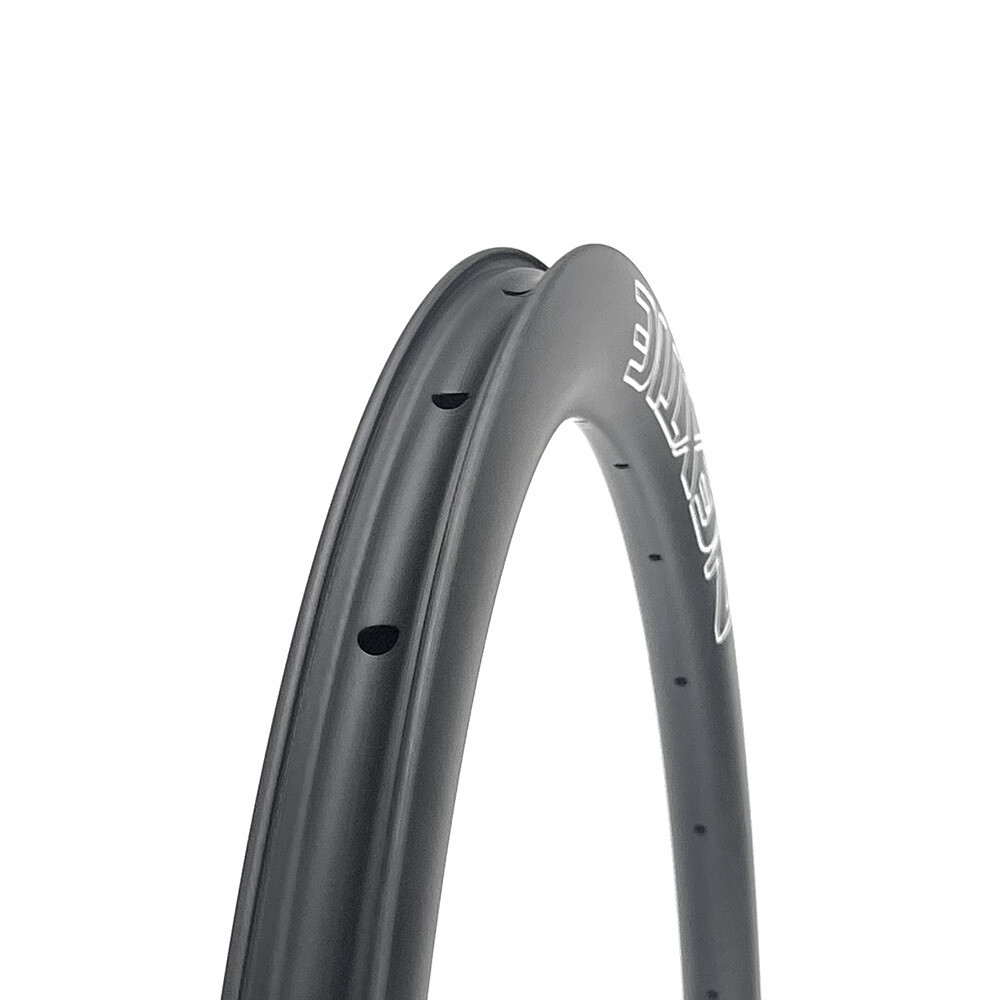

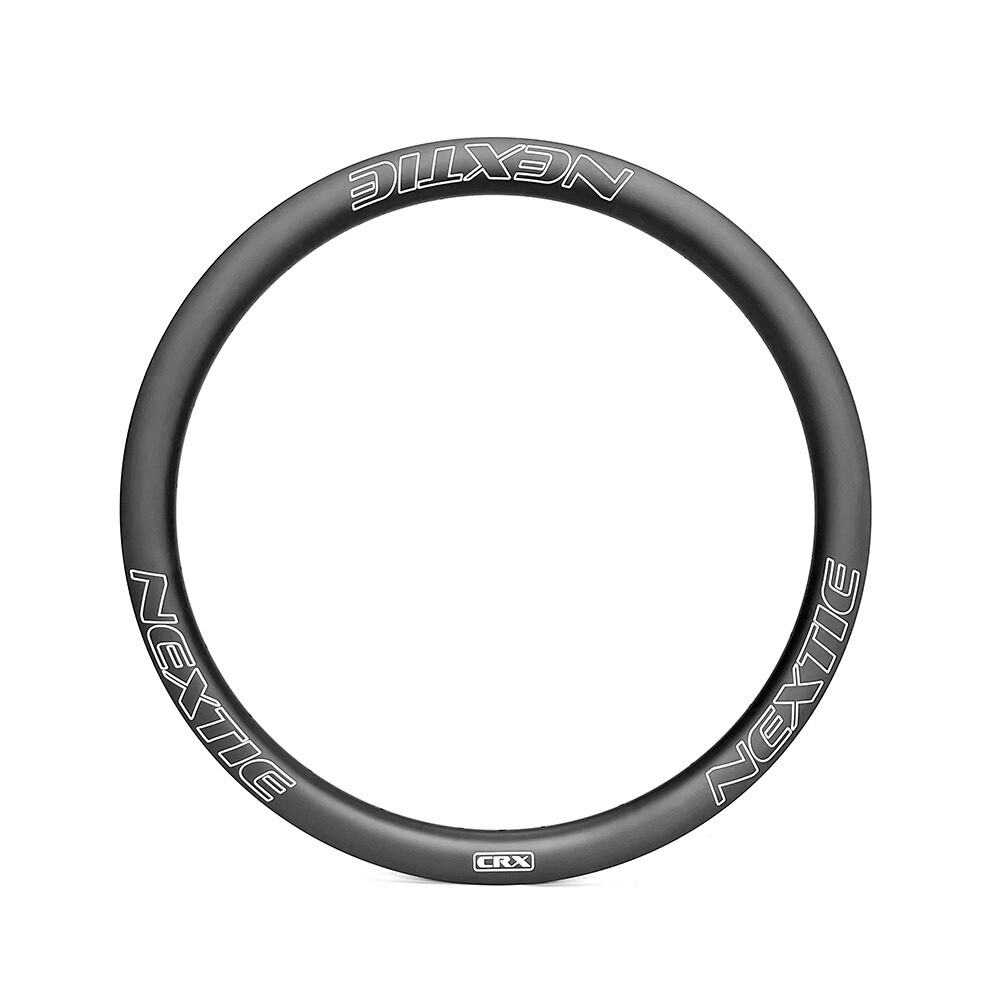

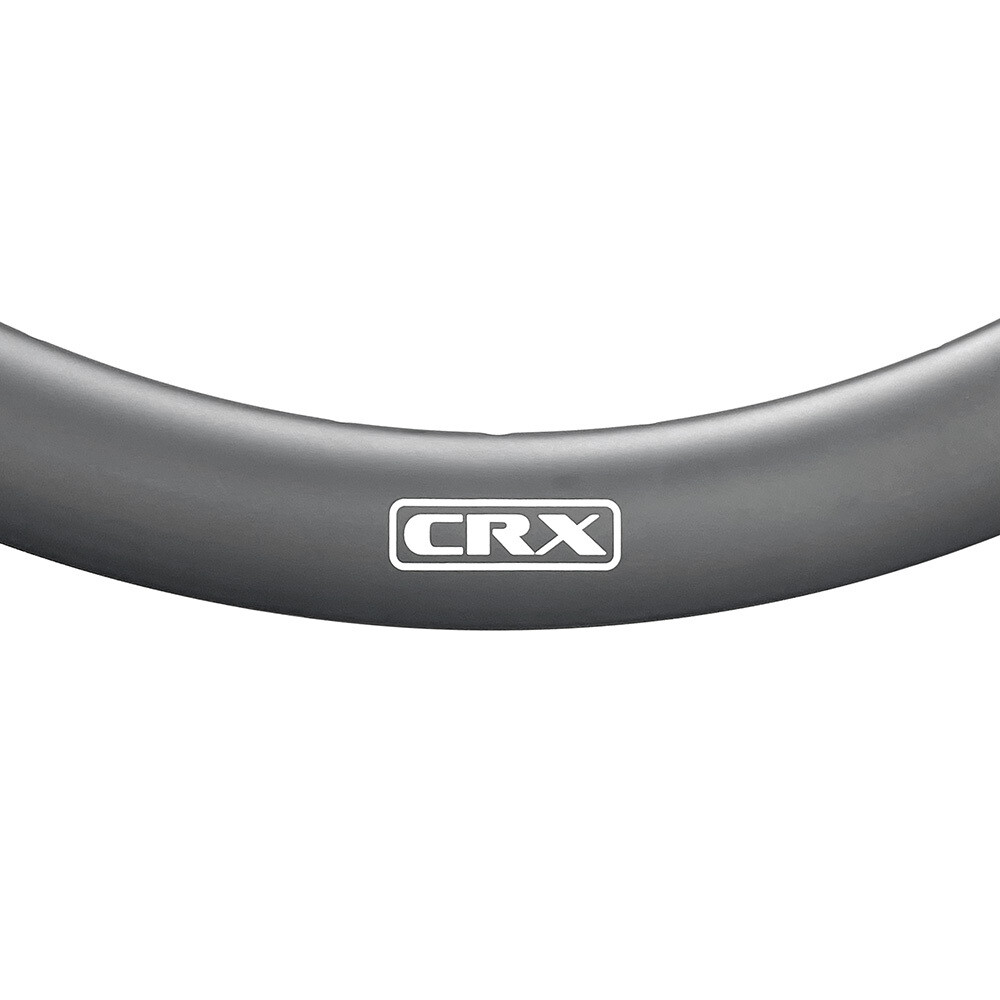

NXT45CRX Premium 700 x 31 x 45mm - Nextie

Basic

• Product Code: NXT45CRX
• Rim Type: Clincher (Tubeless compatible)
• Materials: Toray T800+T700 Carbon fiber
• Drillings: 16, 18, 20, 24, 28, 32, 36
• Warranty: 3 Years

Specification

• Size: 700C

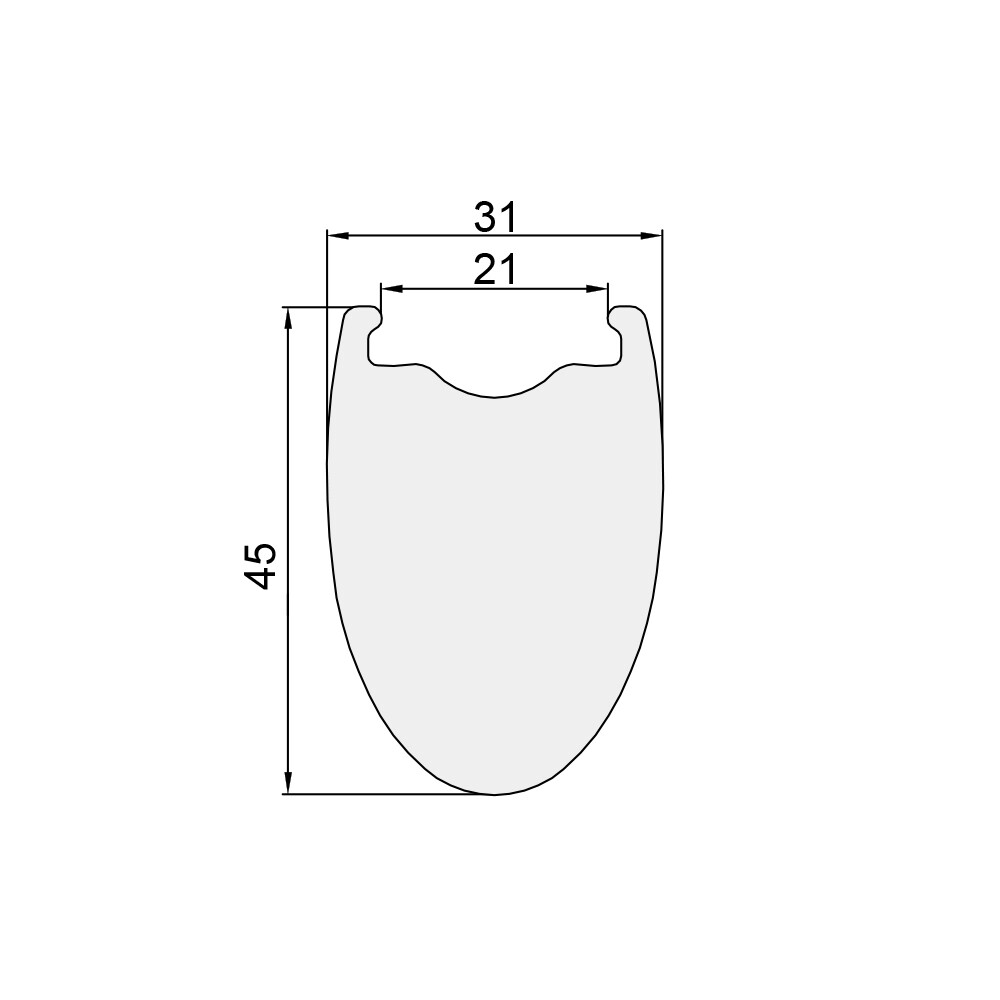

• ERD (Effective Rim Diameter): 551mm
• External Width: 28mm
• Rim Height: 45mm
• Weight: 430g (255TG V-brake); 400g (Disc brake)
• Valve Hole Diameter: 6.5mm (Presta)
• Spoke Holes Diameter: 4.5mm
• Assembly Hole Diameter: 7.5mm

Recommendation

• Spoke Tension: 80~130kgf
• Tire Size: 25mm~52mm
• Spoke Nipple Length: 14mm / 16mm
• Tire Pressure: 75～110psi
• Load Limit (One Wheel): 110kg

Appearance

• Weave: UD / 3K
• Finish: Matte / Glossy

Application

• Road / Triathlon / TT / Cyclocross

Design Features

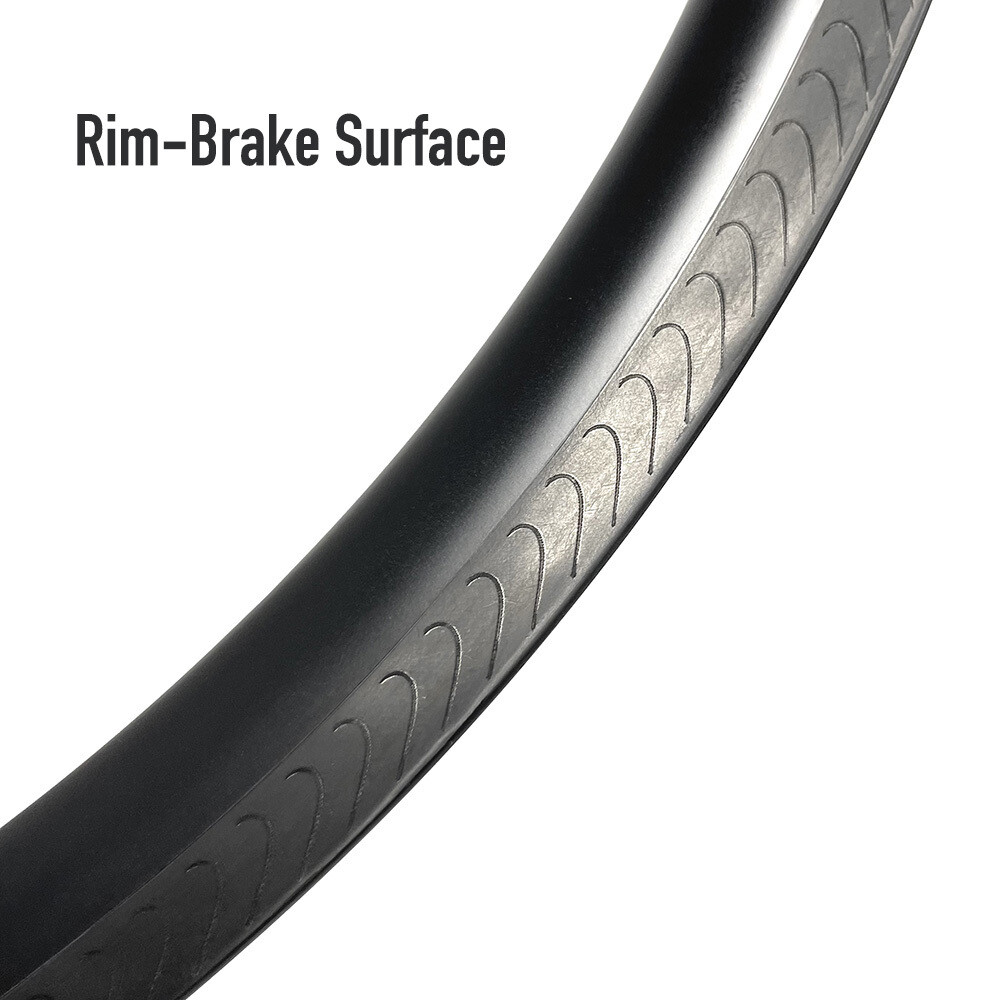

• Graphene Braking Surface
