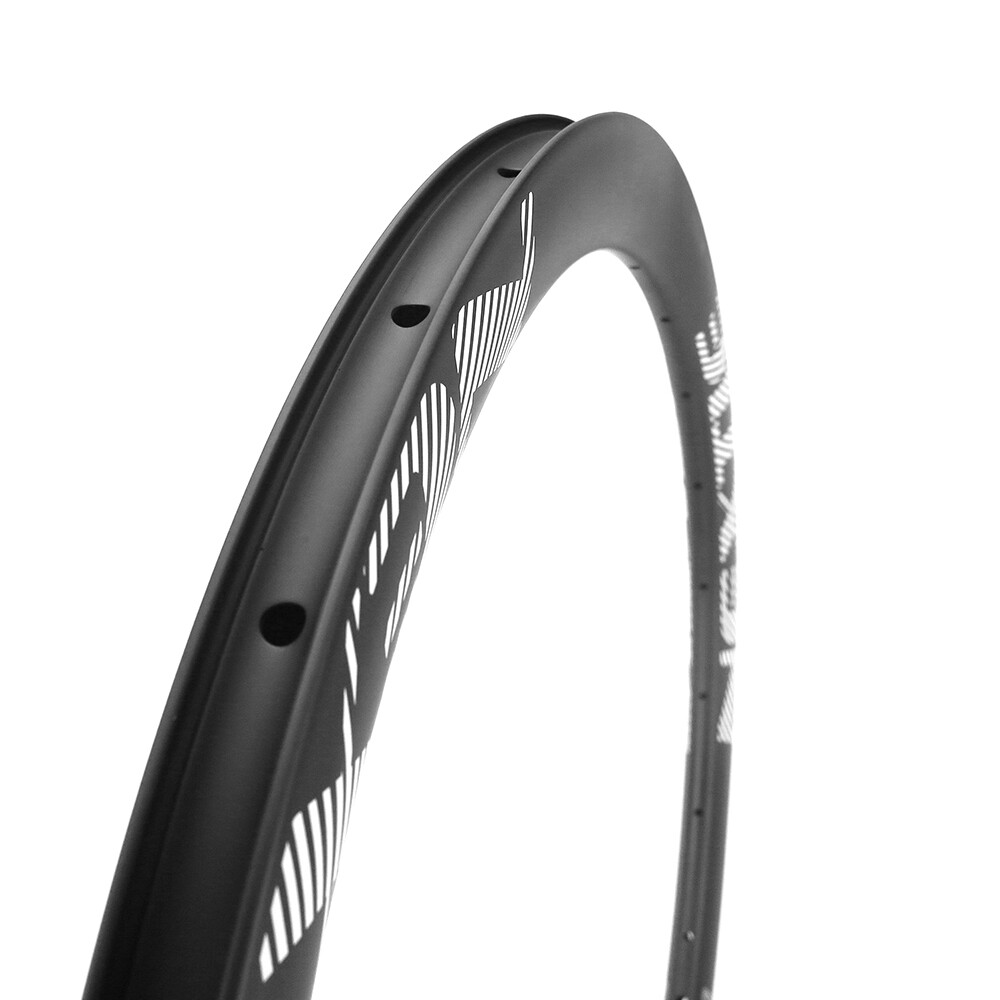

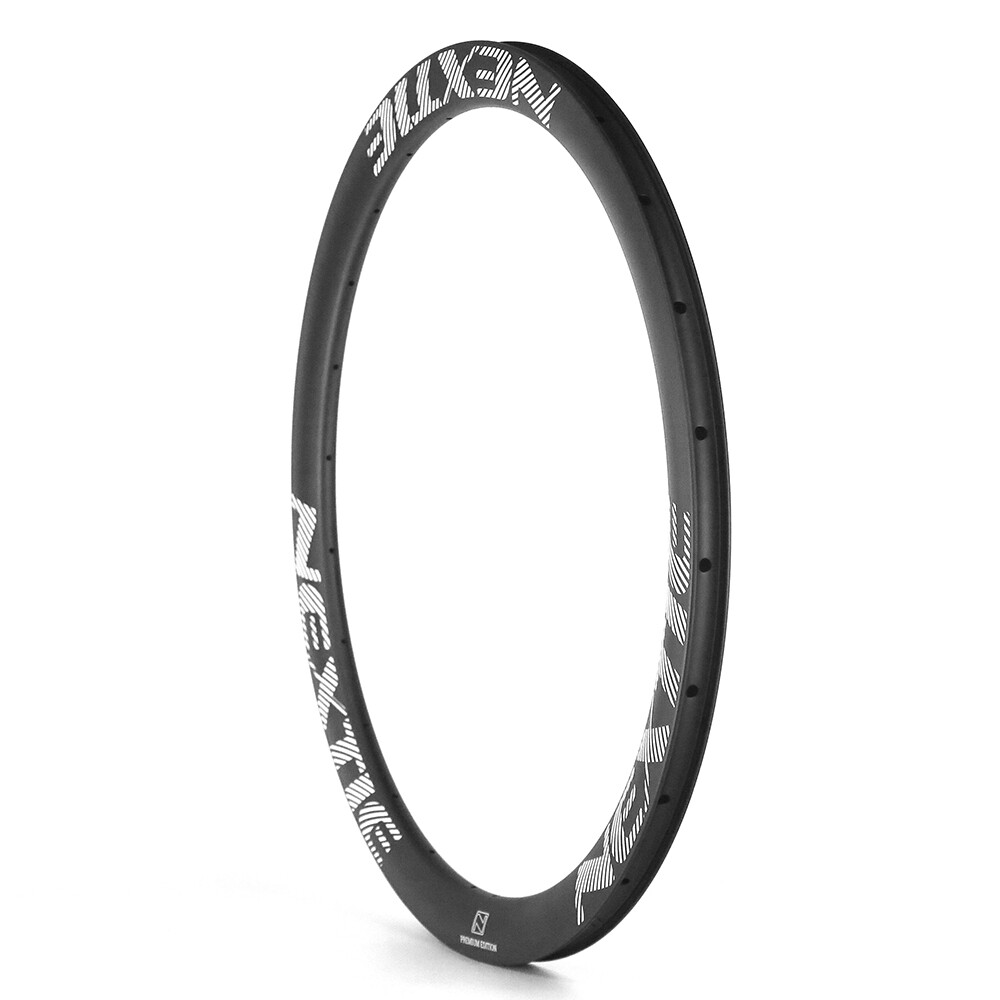

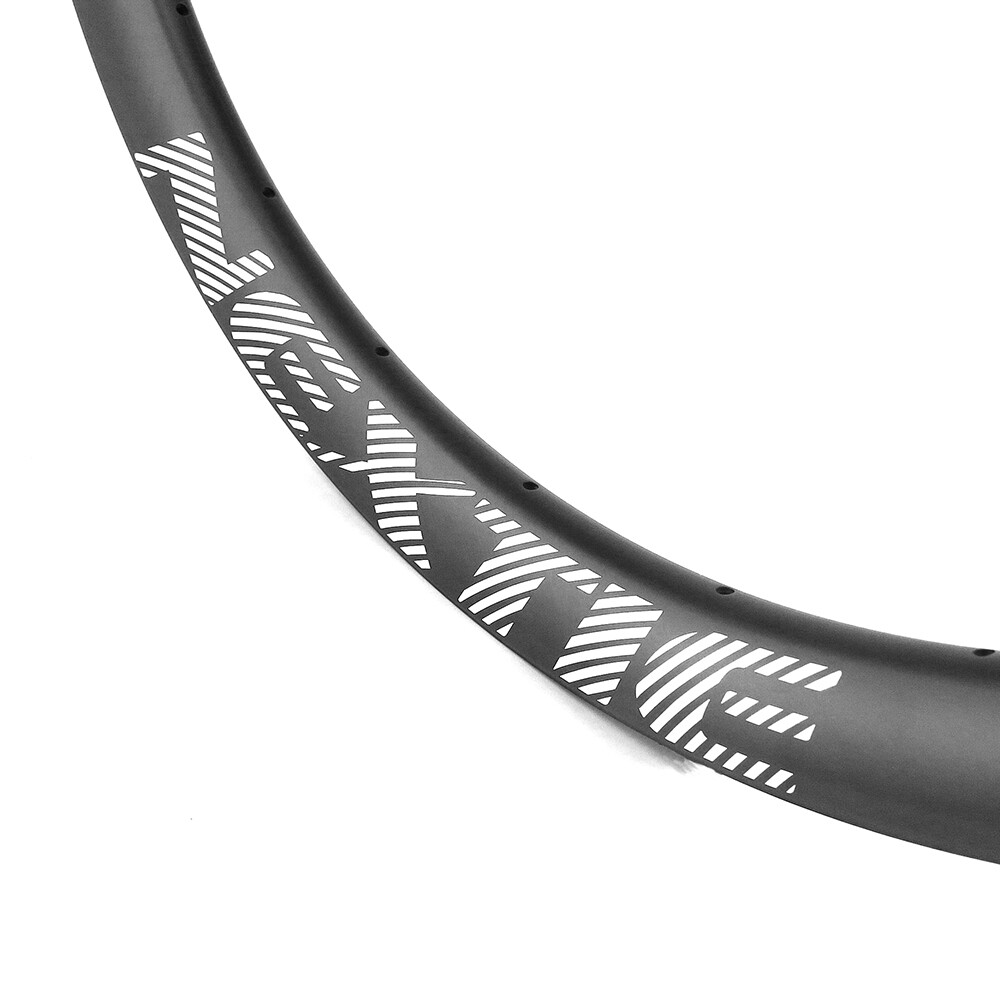

NXT45CRX Premium 700 x 28 x 45mm

All Nextie rims take around 6 weeks to be made and delivered to your door.

Basic

• Item #: NXT45CRX
• Material: Toray T800+T700 Carbon fiber
• Rim Type: Clincher
• Warranty: 3 Years

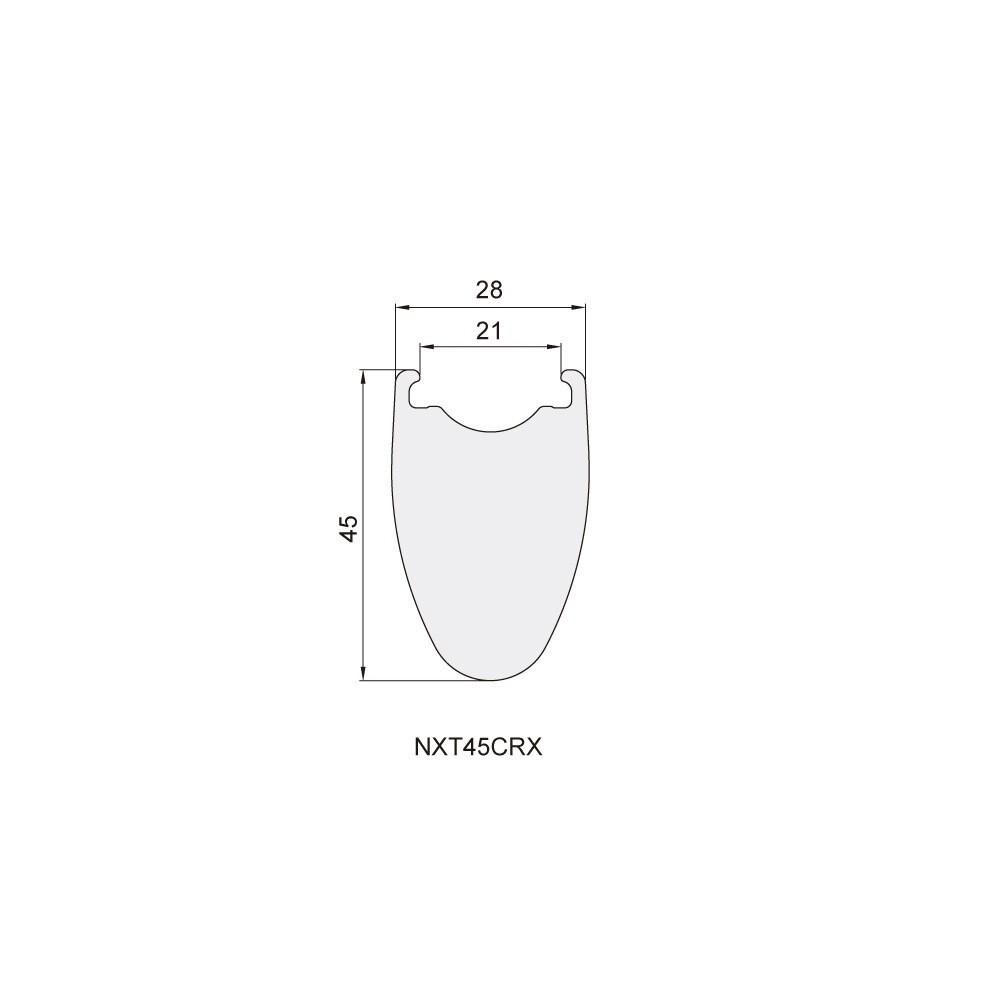

Dimension

• Size: 700C
• ERD: 551mm
• Width: 28mm
• Spoke Hole Dia.: 4.5mm
• Depth: 45mm
• Valve Hole Dia.: 6.5mm
• Weight: 430g (255TG V-brake); 400g (Disc brake)
• Assembly Hole Dia.: 7.5mm
• Hole count: 16, 18, 20, 24, 28, 32, 36

Recommendation

• Max Spoke Tension: 130kgf
• Spoke Nipple Length: 14mm / 16mm
• Weight Limit: 120kg
• Max Tire Pressure: 140psi

Appearance

• Weave: UD / 3K
• Finish: Matte / Glossy

Application

• Road / Triathlon / TT / Cyclocross

Design Features

• Graphene Braking Surface
