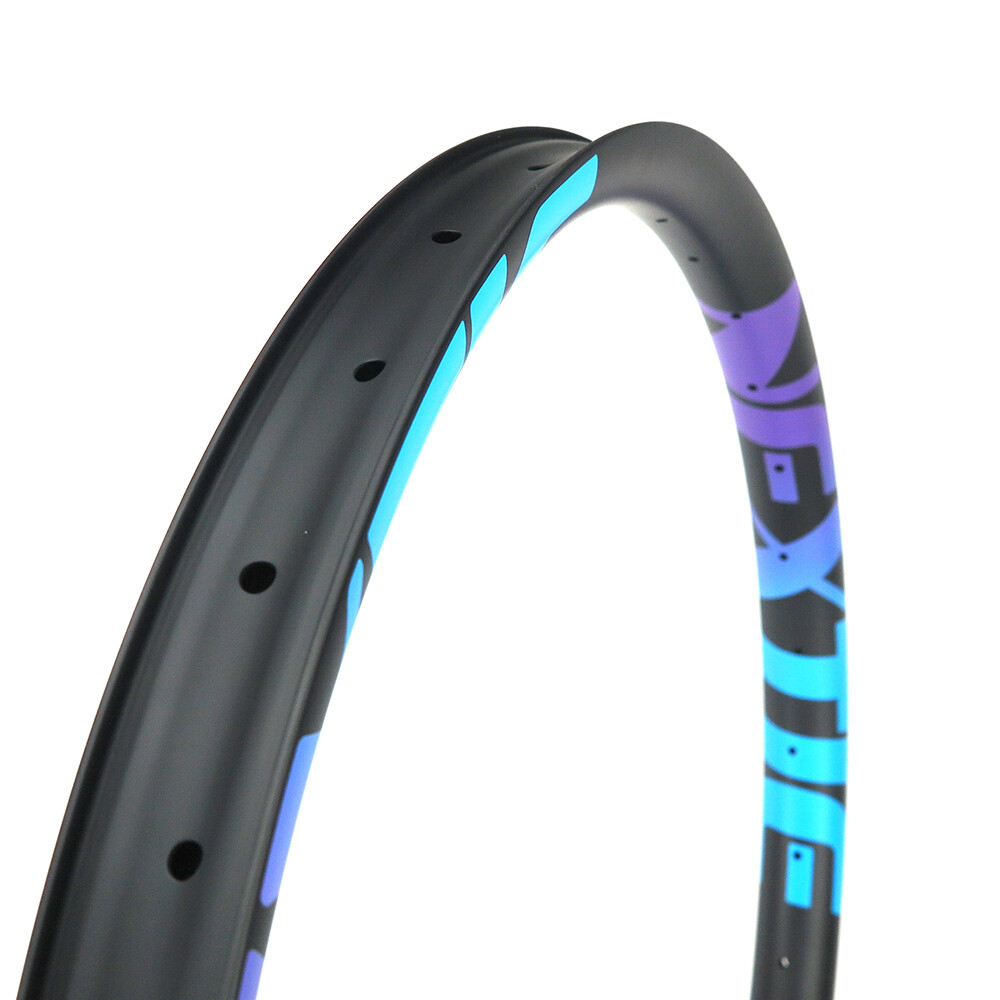

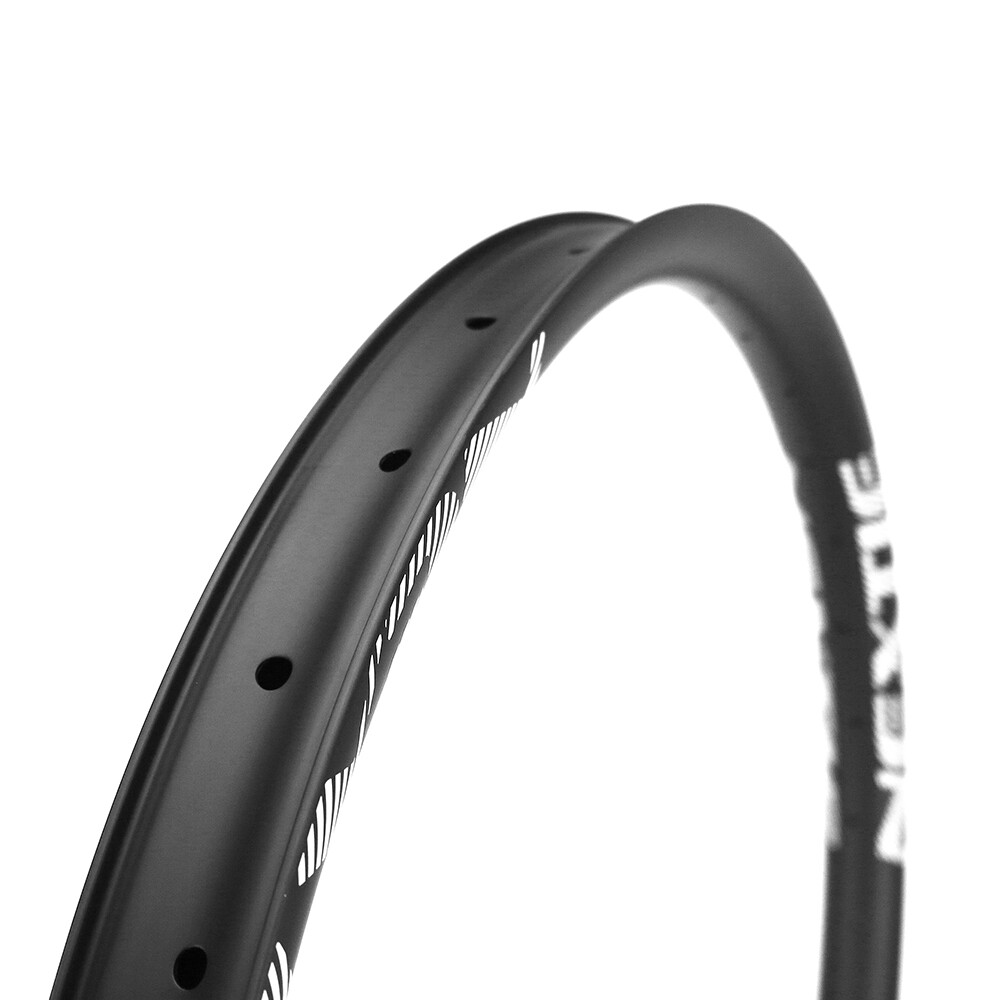

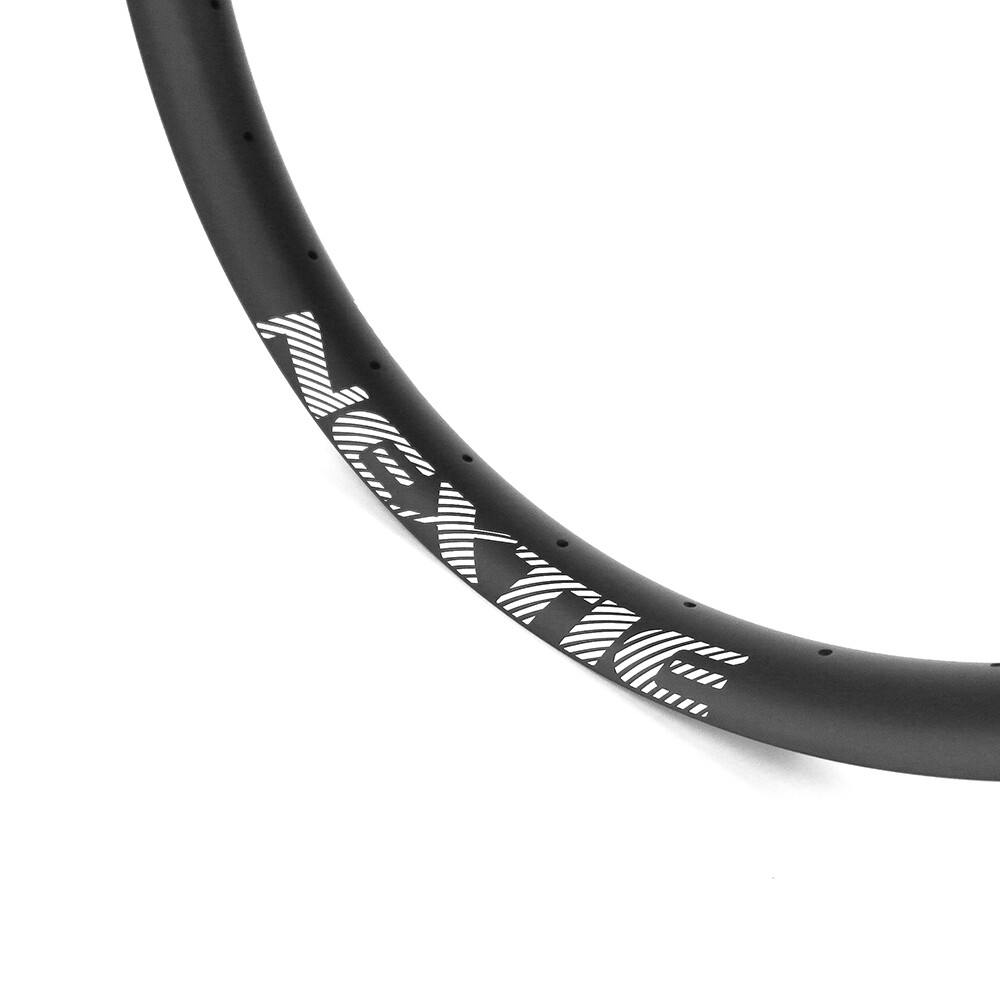

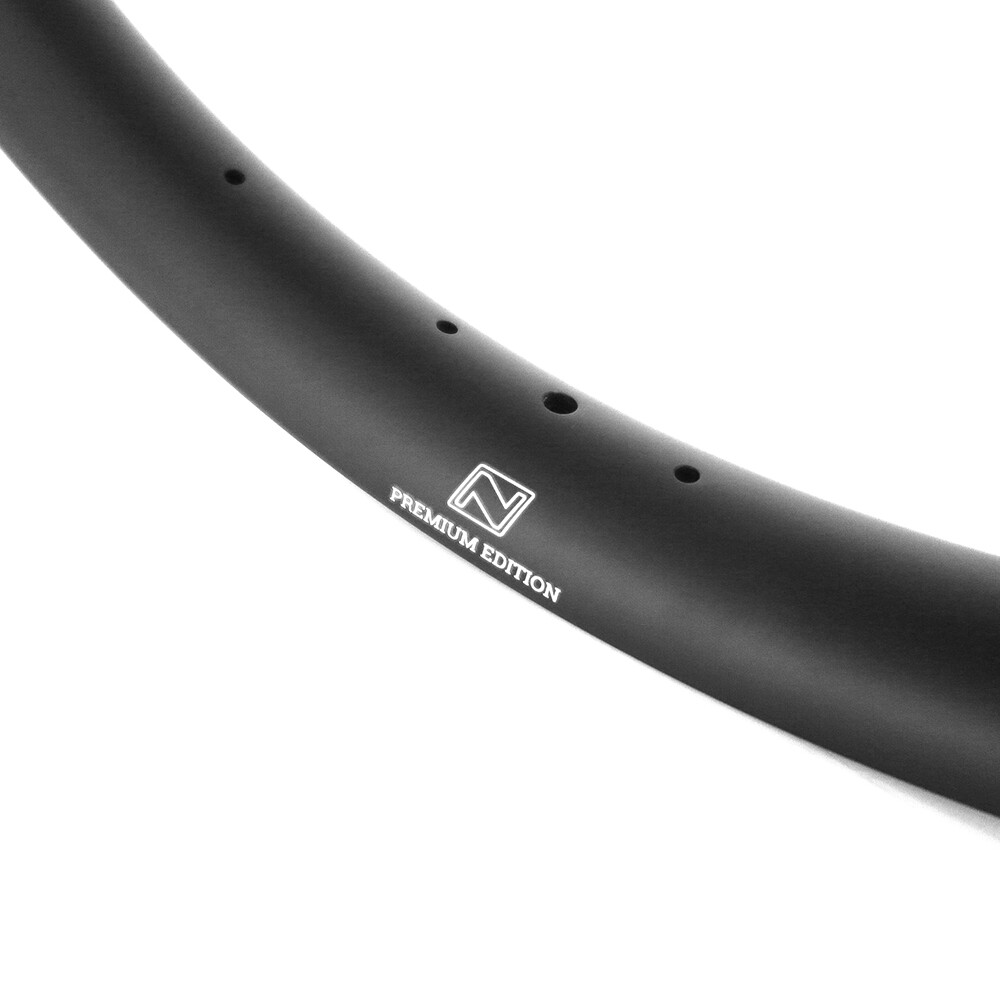

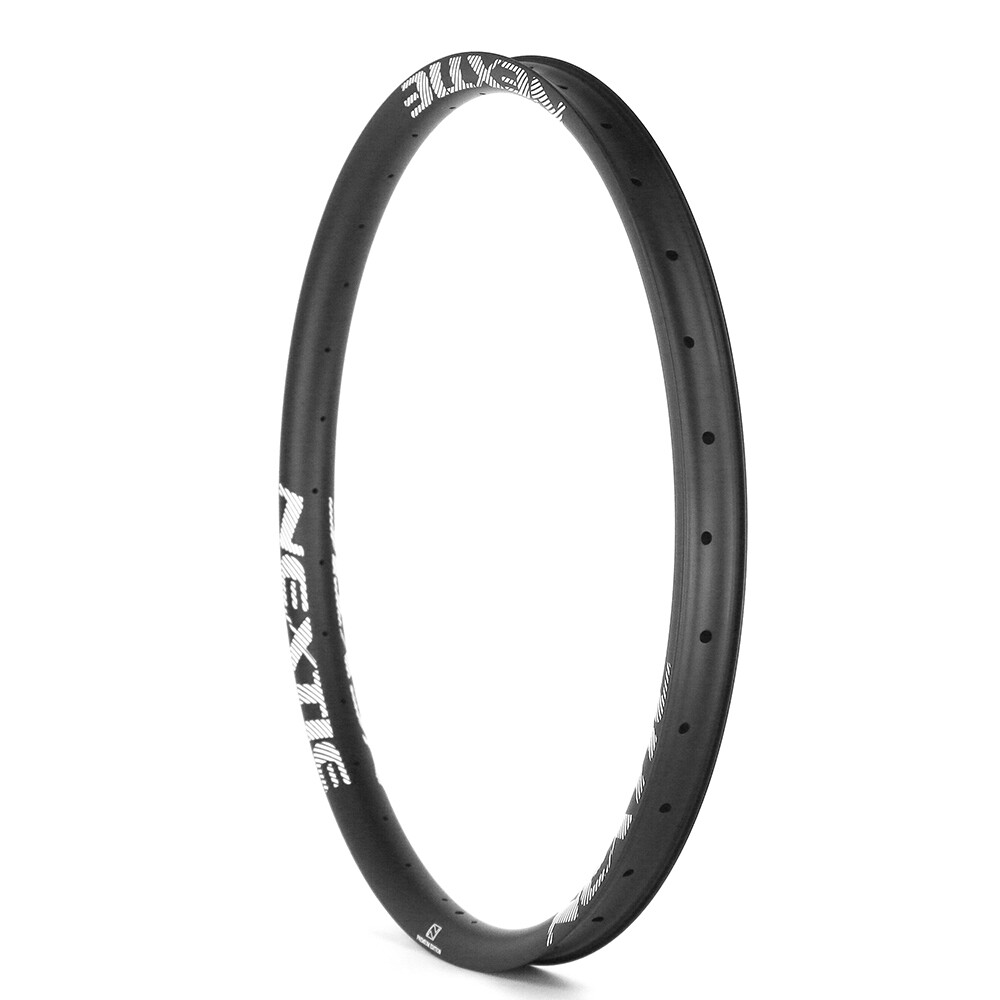

NXT27XM46 PREMIUM 27.5 x 46mm (Plus)

All Nextie rims take around 6 weeks to be made and delivered to your door.

Basic

• Item #: NXT27XM46
• Material: Toray T800+T700 Carbon fiber
• Rim Type: Clincher / Hookless
• Warranty: 3 Years

Dimension

• Size: 27.5"
• BSD: 584mm
• ERD: 549mm
• Spoke Bed Offset: +/- 2.5mm

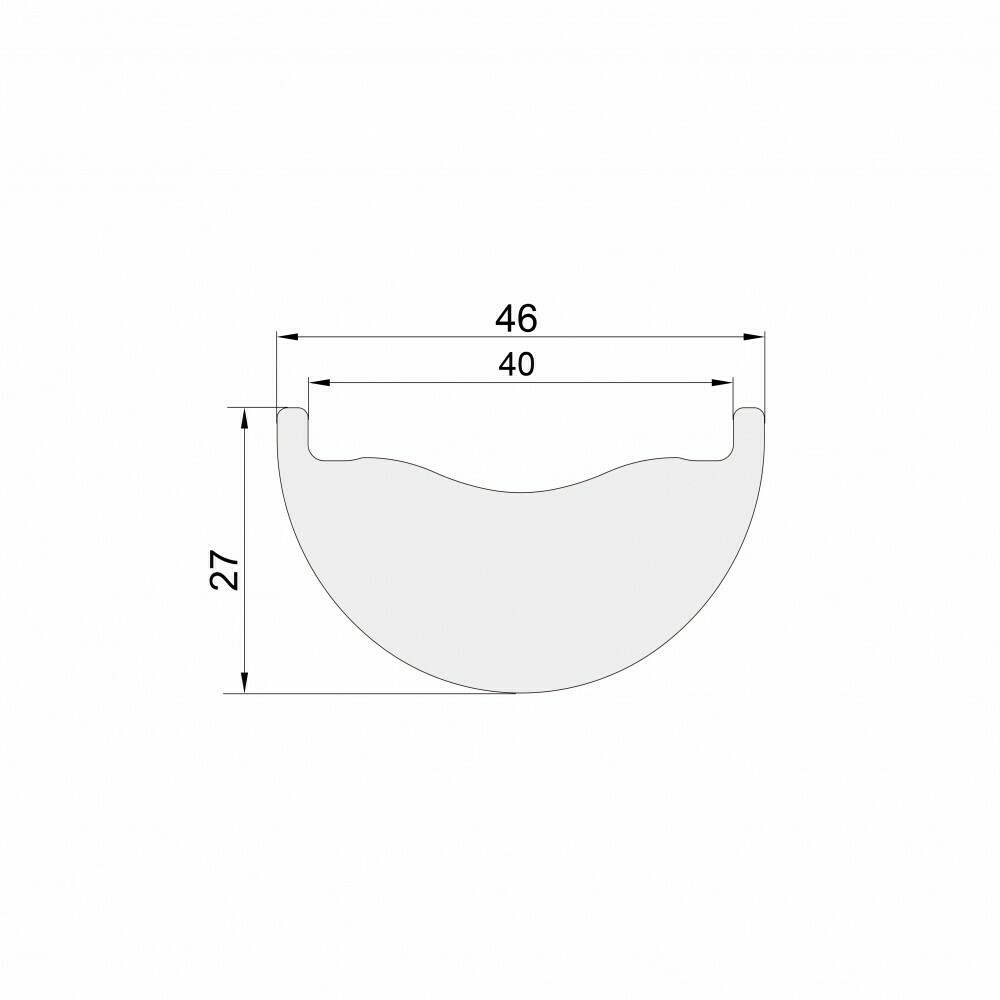

• Width: 46mm
• Spoke Hole Dia.: 2.3mm, 4.5mm, 5.7mm
• Depth: 27mm
• Valve Hole Dia.: 6.5mm (Presta)
• Weight: 445g
• Assembly Hole Dia.: 7.5mm
• Hole count: 28, 32, 36
• Rim Lip Thickness: 3.0mm

Recommendation

• Tire Size: 2.4" ~ 3.5"
• Max Spoke Tension: 150kgf
• Weight Limit: 150kg
• Max Tire Pressure: 50psi

Appearance

• Weave: UD / 3K / 12K
• Finish: Matte / Glossy

Application

• XC / Trail / AM / Enduro
