NXT27XC30 27.5 x 30mm

All Nextie rims take around 6 weeks to be made and delivered to your door.

Basic

• Item #: NXT27XC30
• Material: Toray T700 Carbon Fiber
• Rim Type: Clincher & Hookless
• Warranty: 2 Years

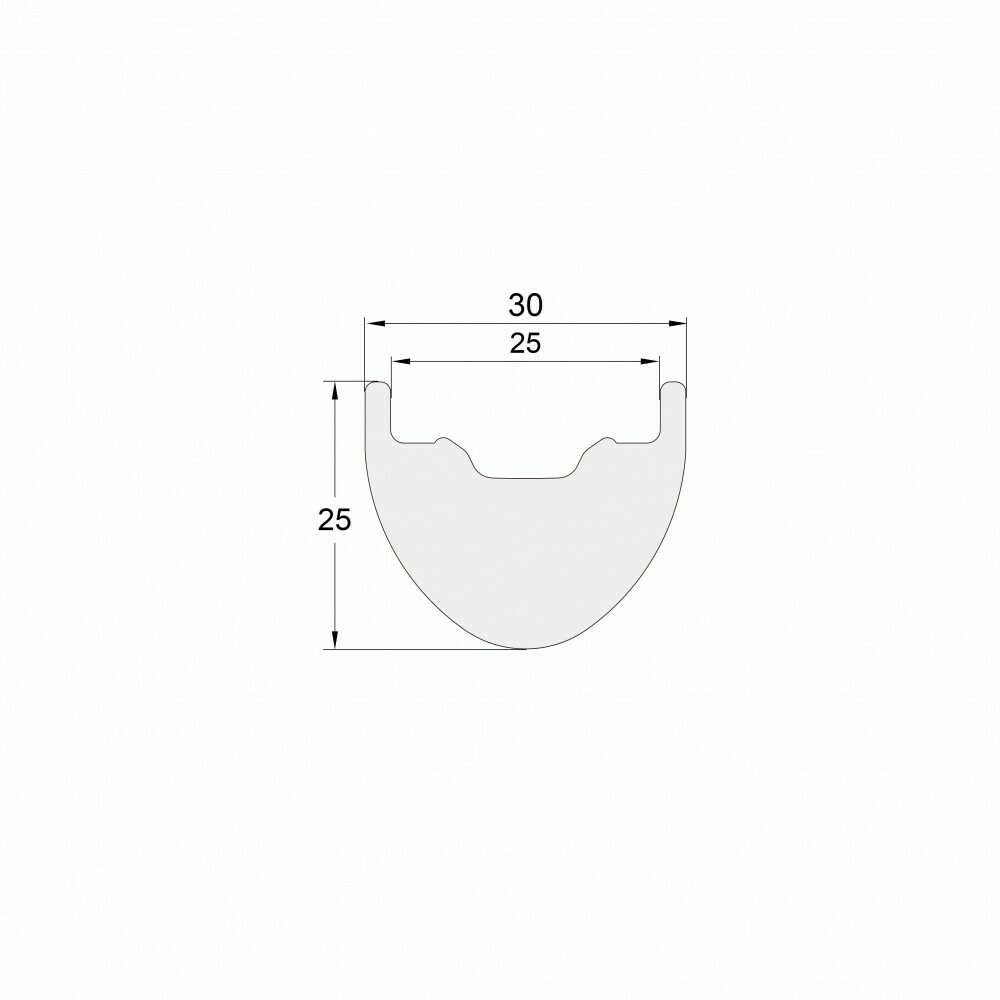

Dimension

• Size: 27.5"
• BSD: 584mm
• ERD: 551mm
• Width: 30mm
• Spoke Hole Dia.: 4.5mm
• Depth: 25mm
• Valve Hole Dia.: 6.5mm
• Weight: 355g
• Assembly Hole Dia.: 7.5mm
• Hole count: 24, 28, 32, 36

Recommendation

• Tire Size: 1.75"~2.3"
• Max Spoke Tension: 130kgf
• Spoke Nipple Length: 14mm / 16mm
• Weight Limit: 120kg
• Max Tire Pressure: 60psi

Appearance

• Weave: UD / 3K
• Finish: Matte / Glossy

Application

• XC / Trail

Tubeless Compatible

• Tubeless Compatible: This function allows you to run tubeless perfectly.

AIO System

• AIO System: The AIO (all in one) system is another technical method to strengthen the rim by using long and continuous carbon fiber layers to wrap into rim. For only one overlap of a layer circle, not only can it keep the original continuous strength of carbon fiber layers, but also it saves weight;
