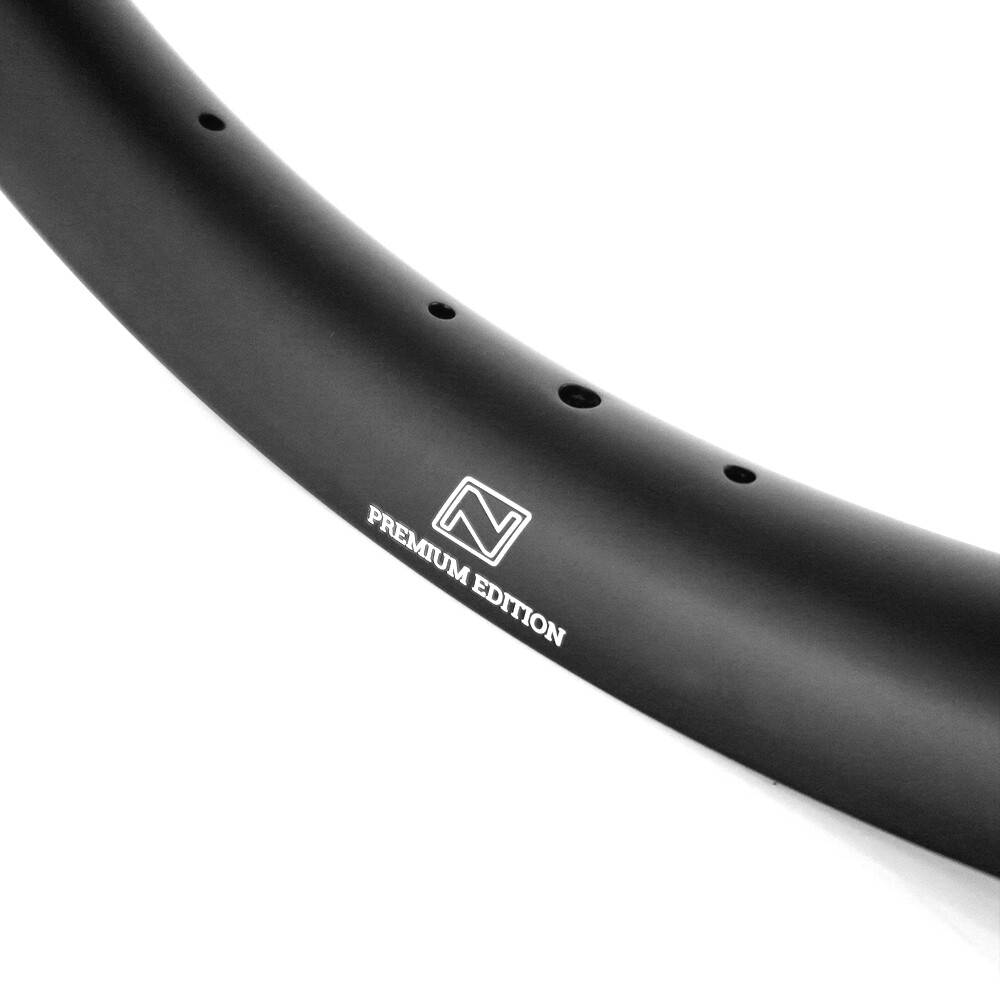

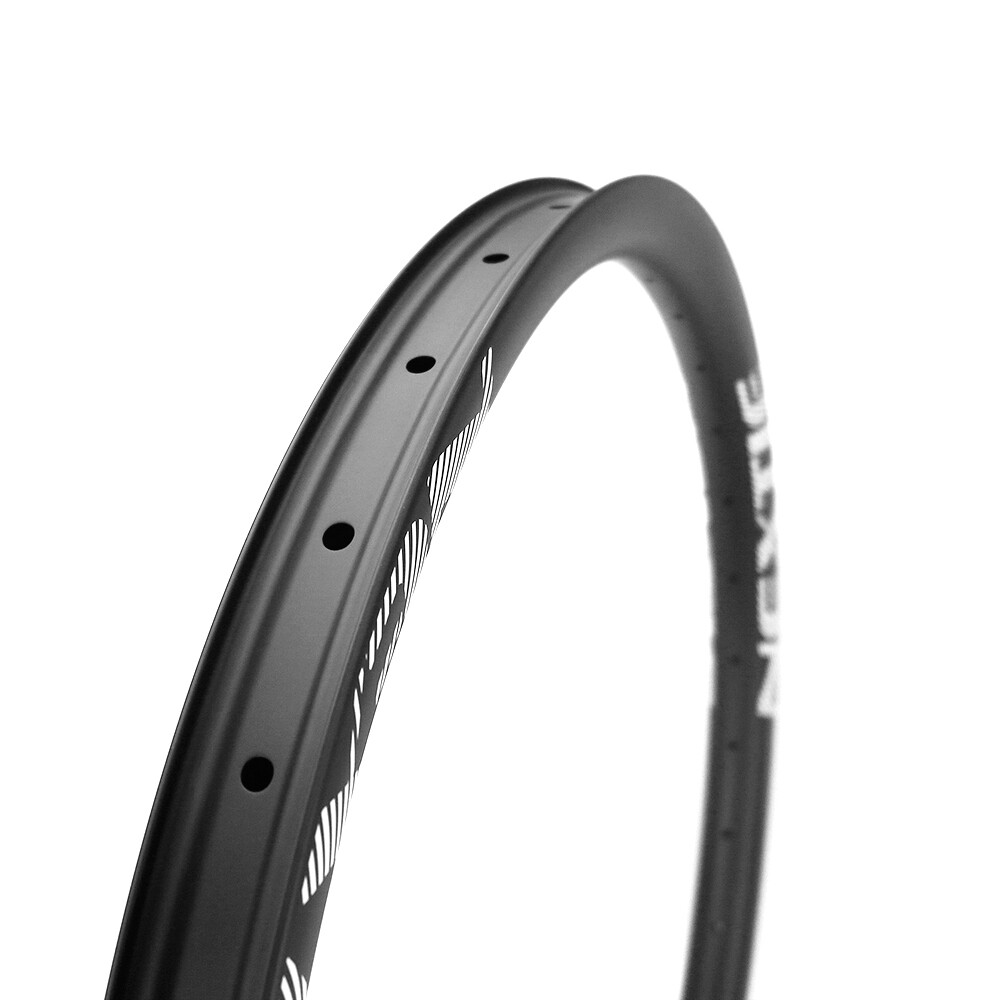

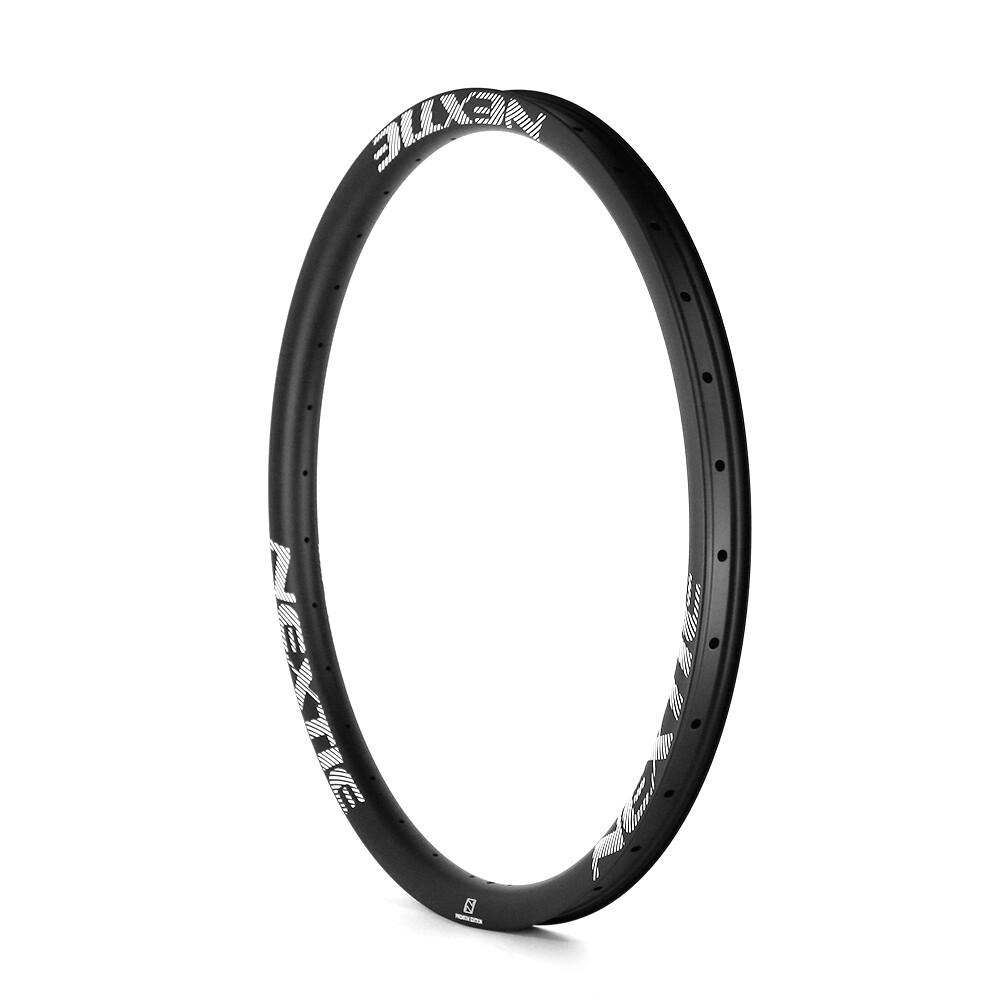

NXT27AM40 AM / Enduro 27.5 x 40mm

All Nextie rims take around 6 weeks to be made and delivered to your door.

Basic

• Item #: NXT27AM40
• Material: Toray T700 Carbon Fiber
• Rim Type: Clincher & Hookless
• Warranty: 2 Years

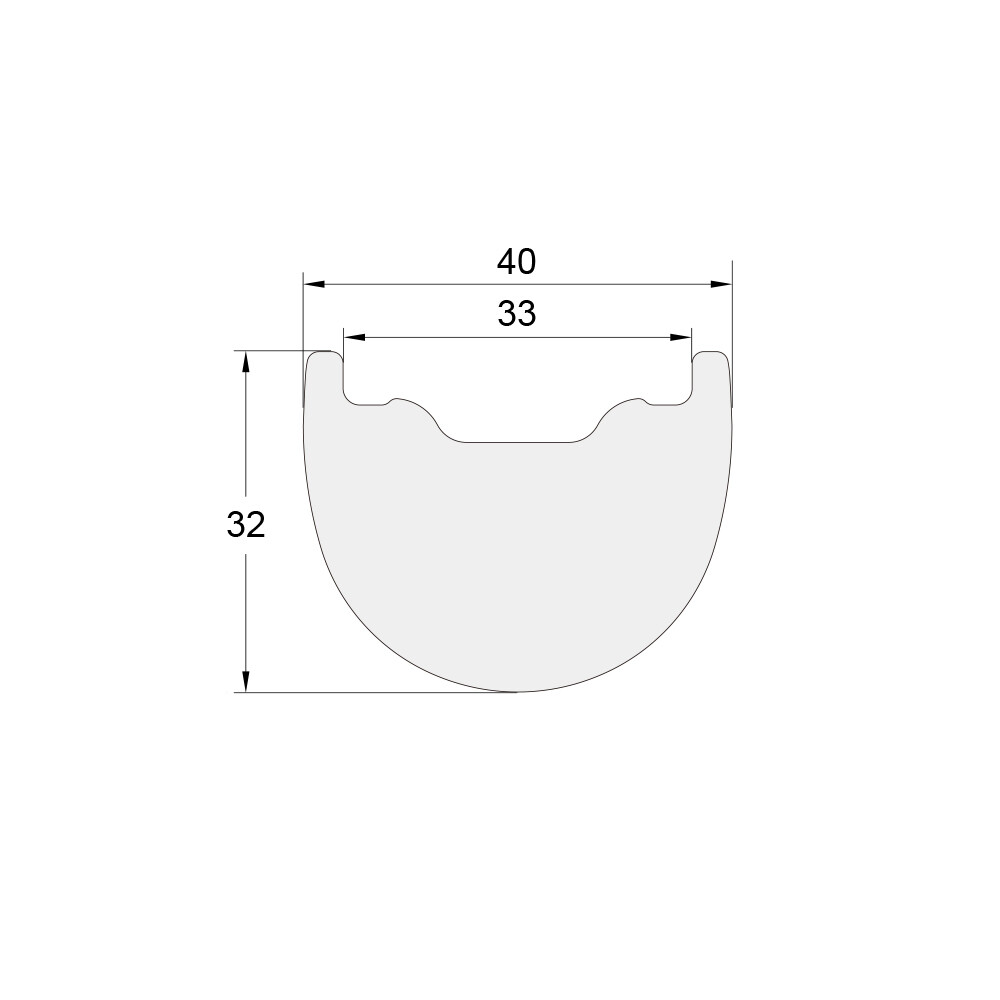

Dimension

• Size: 27.5" / 650B
• BSD: 584mm
• ERD: 537mm
• Width: 40mm
• Spoke Hole Dia.: 4.5mm
• Depth: 32mm
• Valve Hole Dia.: 6.5mm (Presta)
• Weight: 460g (standard) / 485g (reinforced)
• Assembly Hole Dia.: 7.5mm
• Hole count: 28, 32, 36
• Rim Lip Thickness: 3.5mm

Recommendation

• Tire Size: 2.3" ~ 3.0"
• Max Spoke Tension: 130kgf
• Weight Limit: 180kg
• Max Tire Pressure: 60psi

Appearance

• Weave: UD / 3K / 12K
• Finish: Matte / Glossy

Application

• AM / Enduro...
