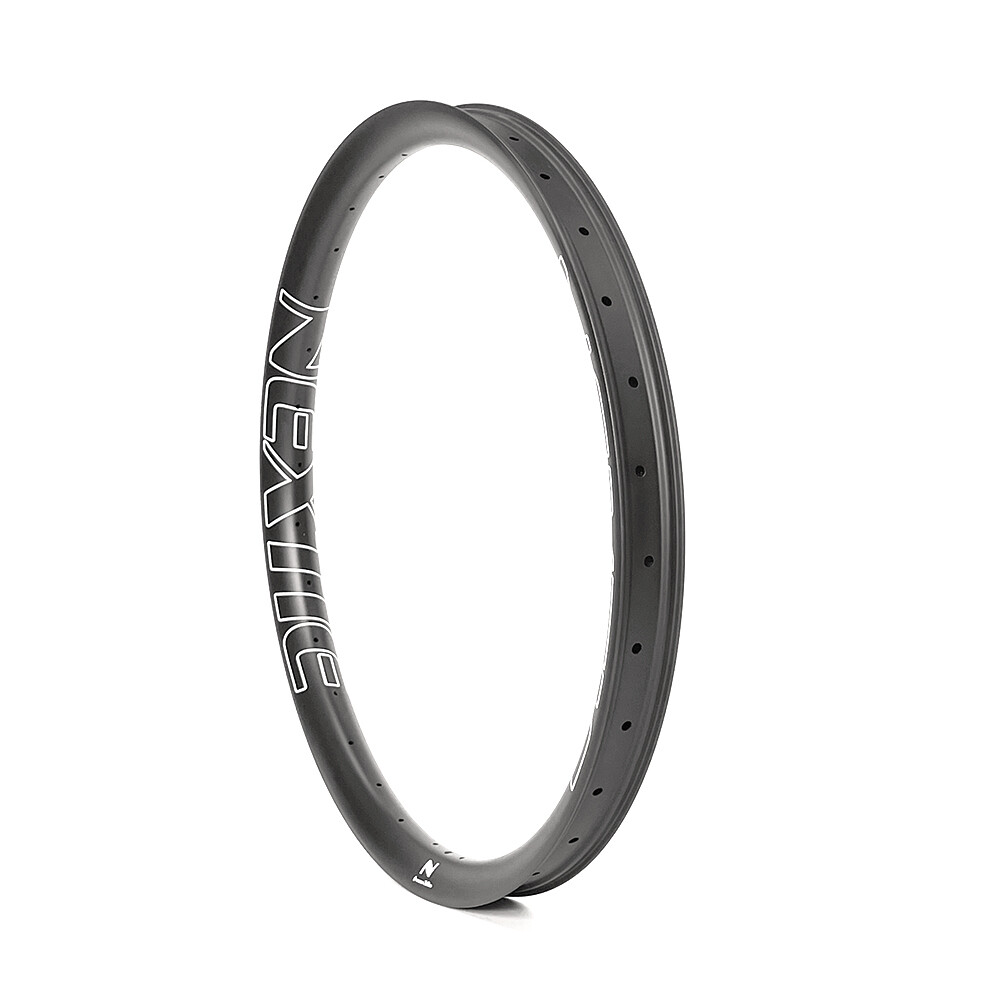

[Jungle Fox II] 29" MTB Rim 52mm

All Nextie rims take around 6 weeks to be made and delivered to your door.

Basic

• Item #: NXT29JF52-II
• Material: Toray T700 Carbon Fiber
• Rim Type: Clincher / Hookless / Tubeless Compatible
• Name: Jungle Fox Mark II
• Warranty: 2 Years

Dimension

• Size: 29"
• BSD: 622mm
• ERD: 573mm
• Spoke Bed Offset: 2.5mm
• External Width: 52mm
• Spoke Hole Dia.: 4.5mm
• Depth: 34mm
• Valve Hole Dia.: 6.5mm (Presta)
• Weight: 530g
• Assembly Hole Dia.: 7.5mm
• Hole count: 28, 32, 36
• Rim Lip Thickness: 3.5mm

Recommendation

• Tire Size: 2.7" ~ 3.8"
• Max Spoke Tension: 130kgf
• Carrying Capacity (One Wheel): 160kg
• Max Tire Pressure: 60psi

Appearance

• Weave: UD / 3K / 12K
• Finish: Matte / Glossy
• Note: Glossy is around 5g more than Matte, 12K is around 5g more than UD or 3K.

Application

• AM / Trail / Dirt / Enduro / Snow / Sand / Bogs / Desert / Mud

Color Option

• Note: Color paint adds 20g each rim; Decals adds around 10g for each rim accordingly.

Design Features

• - Deep channel will help you easily install and take off a tire;
• - Small bead socket makes the tire lock tightly and runs tubeless perfectly;
• - Aero roof surface (triangle-like shape) will easily shed the dirt and mud better to release weight;
• - Section of triangle's inherent feature of stability on rim design keeps rim in stronger performance.
