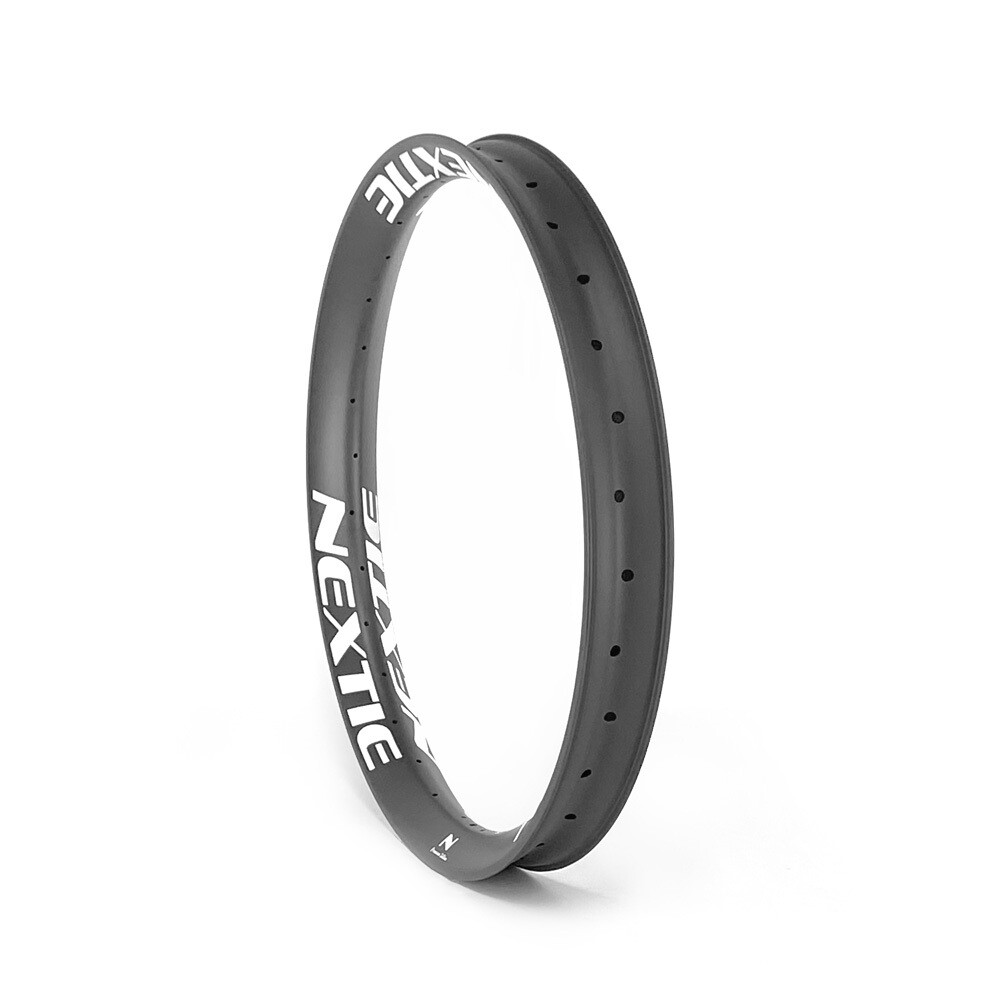

[Black Eagle] 27.5" Fat Rim 65mm

Nextie rims are bespoke made and take around 6 weeks to delivered to your door.

Basic

• Item #: NXT27BE65-II
• Material: Toray T700 Carbon Fiber
• Rim Type: Clincher / Hookless
• Name: Black Eagle Mark II
• Warranty: 2 Years

Dimension

• Size: 27.5" / 650B
• Axial Direction Angle: 8 degree
• BSD: 584mm
• Radial Direction Angle: 5 degree
• ERD: 535mm
• Spoke Bed Offset: 2.5mm
• External Width: 65mm
• Spoke Hole Dia.: 4.5mm
• Depth: 34mm
• Valve Hole Dia.: 6.5mm (Presta)
• Weight: 580g
• Assembly Hole Dia.: 7.5mm
• Rim Lip Thickness: 3.5mm

Recommendation

• Tire Size: 3.0" ~ 4.8"
• Max Spoke Tension: 130kgf
• Carrying Capacity (One Wheel): 180kg
• Max Tire Pressure: 35psi

Appearance

• Weave: UD / 3K / 12K
• Finish: Matte / Glossy

Application

• Trail / Dirt / Enduro / Snow / Sand / Bogs / Desert / Mud

Design Features

• - Width 65mm fits more forms of cycling and keeps riding in great stability;
• - Deep section (34mm) could make fat bikes be used for more aggressive cycling forms;
• - Deep channel would help you easily install and take off a tire;
• - Small bead socket would lock tightly and help run tubeless perfectly;
• - Aero roof surface (triangle-like shape) could easily shed the dirt or mud, better to release weight during cycling;
• - Section of triangle's inherent feature of stability on rim design keeps rim in strong performance.
